Our Erosion Control Solutions

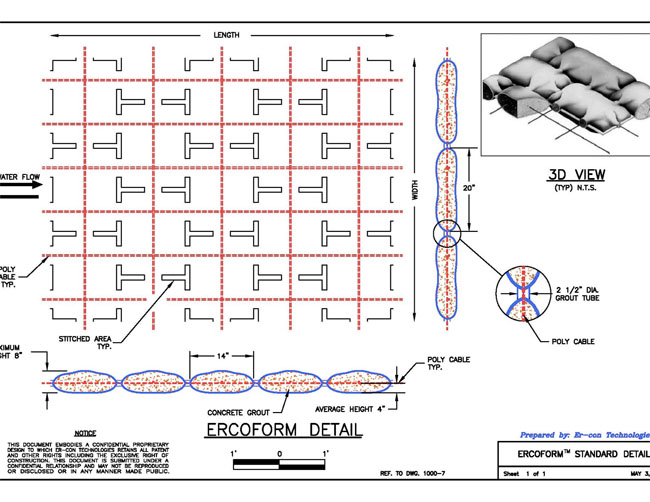

Ercoform™ Articulating Grout Mat

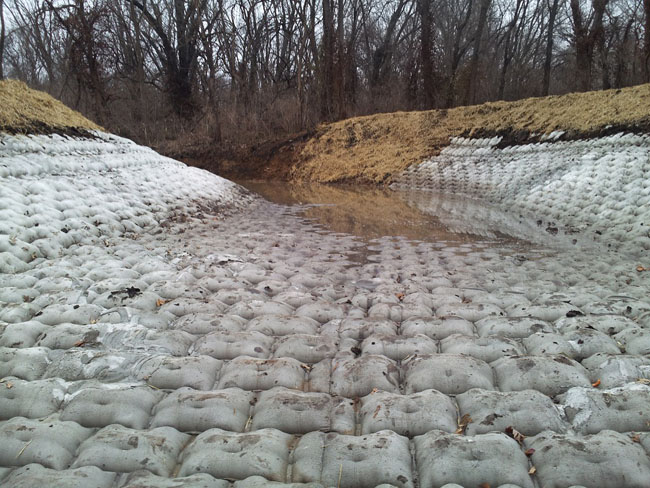

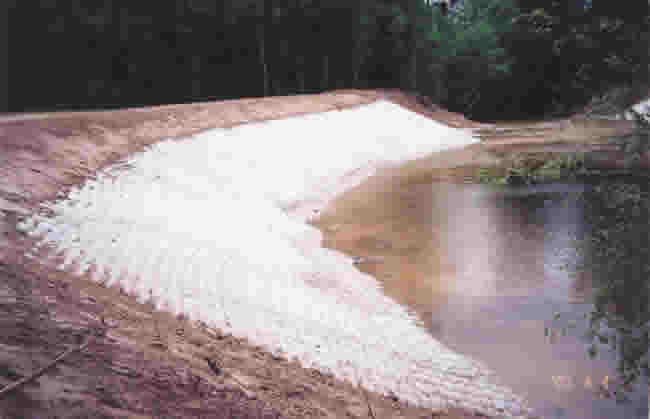

The Ercoform grout mat system is a dual layer, tendon reinforced cellular container, fabricated to the site-specific requirements. Once the site preparation is complete, the system is then injected with a concrete mix designed to flow into and fill the Ercoform mat. The result is a high-strength protection that is flexible and conforms to the natural creek bottom and water current action. Unique features of this engineered system can be designed to compensate for years of future bottom and side slope degradation.

Click here to view some of our ERCOFORM™ projects

Available Ercoform™ PDF files (Please click on the file name to download or view the PDF): Ercoform; Ercoform Specifications Sheet

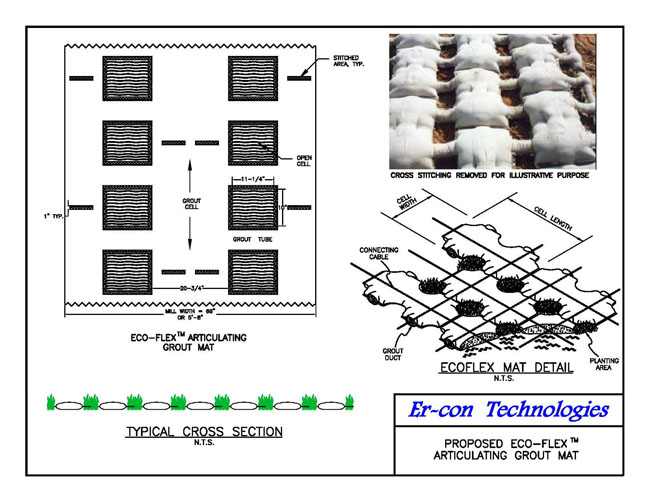

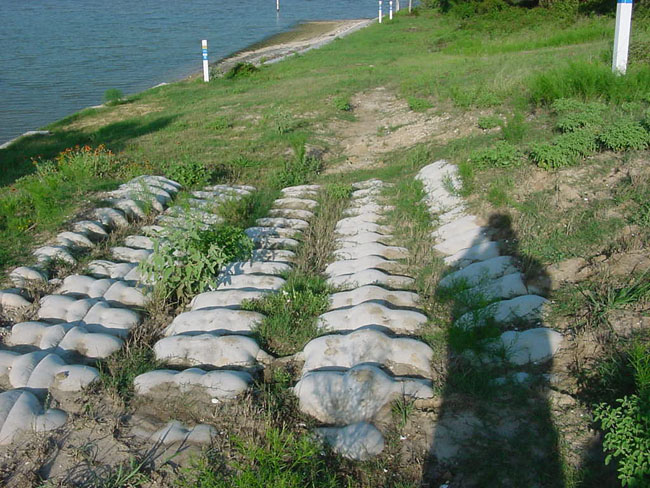

Eco-flex™ Articulating Grout Mat

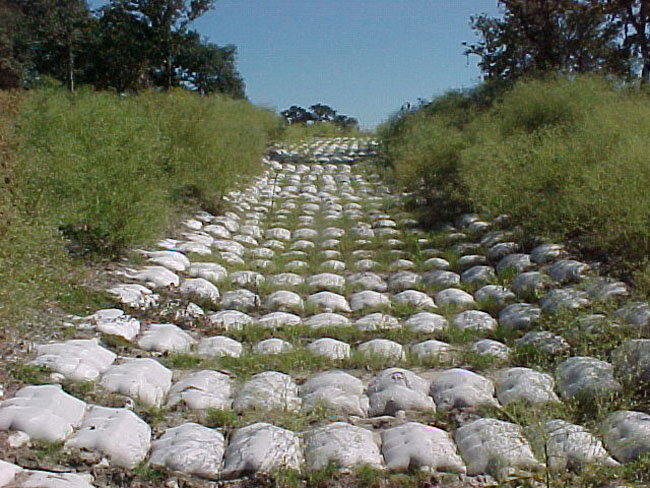

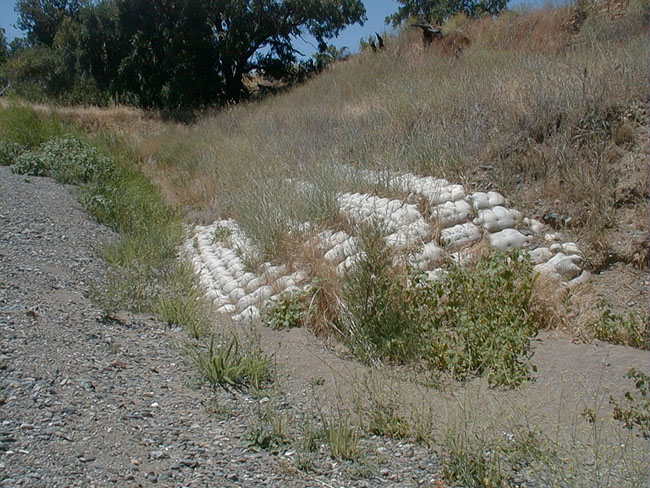

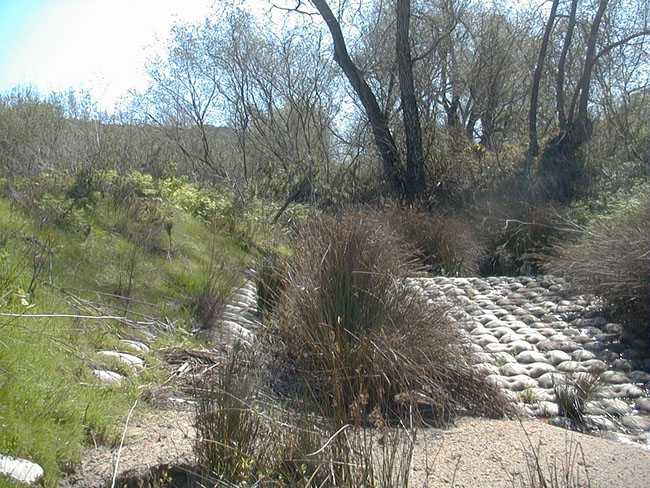

Eco-Flex is another example of the utility of fabric forms. This configuration is known as Eco-Flex and it facilitates the return of natural vegetation. This product can be used in designs to accommodate the permitting agency's environmental requirements and the hydraulic requirements of the site as well as the need to provide slope protection.

Click here to view some of our ERCOFORM™ projects

Available Eco-flex™ PDF files (Please click on the file name to download or view the PDF): Eco-Flex; Eco-Flex Specifications Sheet

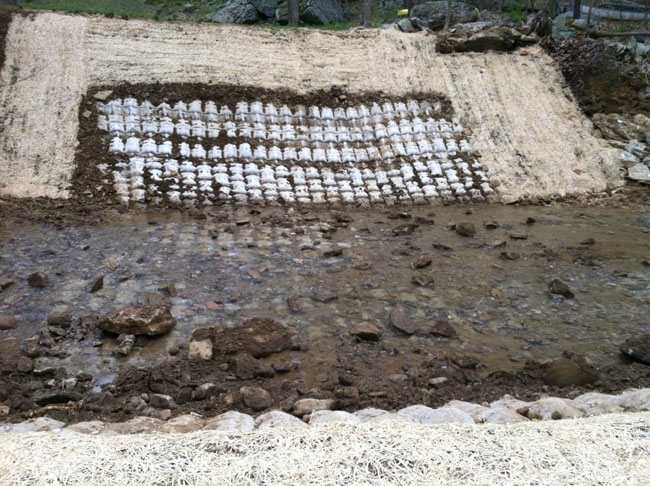

System™ 21 Articulating Grout Mat

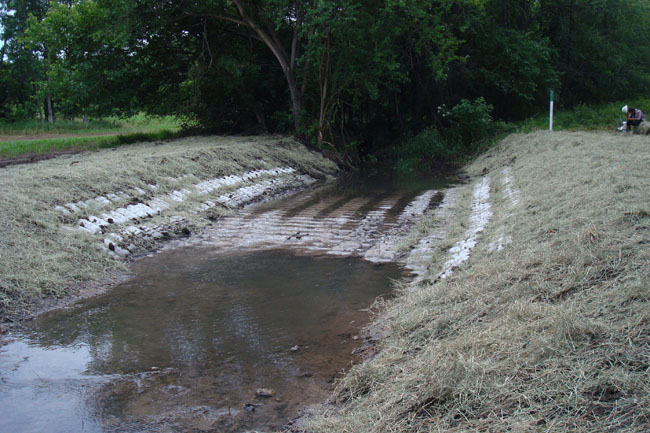

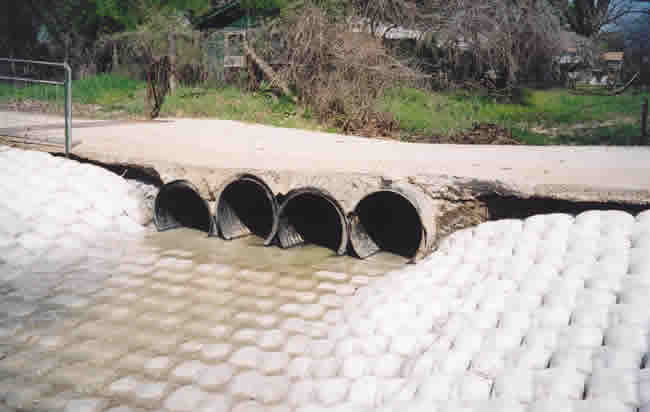

The System 21 mat is the integration of our two (2) other mat forms.  The System 21 uses the Ercoform grout mat along the bed of the project with Eco-flex lining the banks.  This allows for the vegetative re-growth aesthetics of the Eco-flex mats with the high-strength protection of Ercoform.  This technology is used where water velocities along the bank allow for installation of the re-vegetative mat.

Click here to view some of our System™ 21 projects

Available System ™ 21 PDF files (Please click on the file name to download or view the PDF): Environmental Concerns

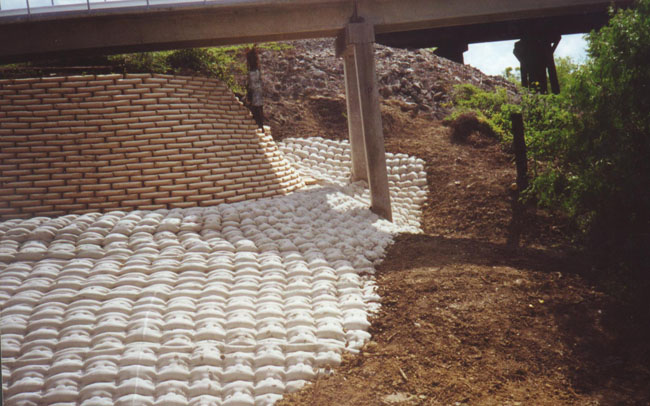

Flexible Concrete Revetment™

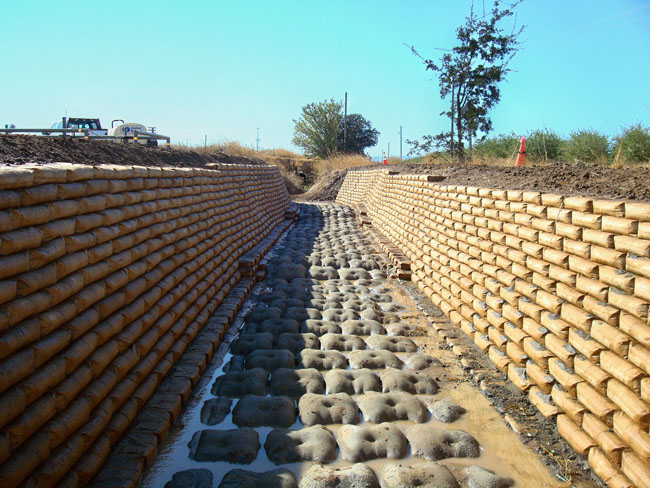

Our patented Flexible Concrete Revetment systems are used in uniquely engineered and designed erosion control soil stabilization systems. Because these systems are designed to vent hydrostatic pressure and flex under loads that would cause rigid structures to fail, the Er-Con Technologies approach provides a far more permanent solution.

Click here to view some of our Flexible Concrete Revetment™ projects

Available Flexible Concrete Revetment™ PDF files (Please click on the file name to download or view the PDF): FCR Brochure; FCR 2-Tier Standard

Palisade™ River Training System

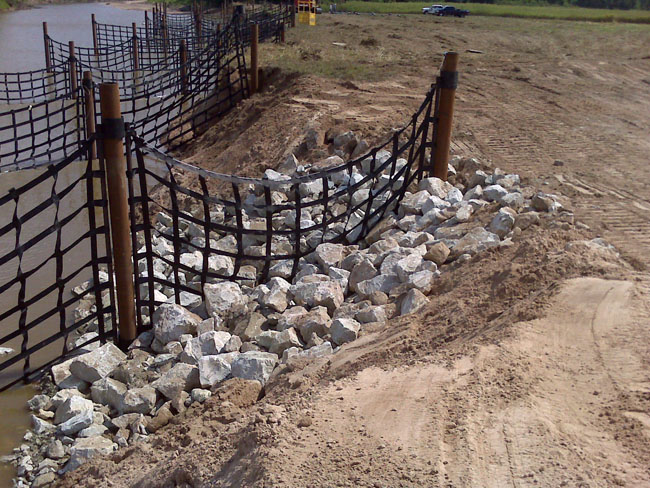

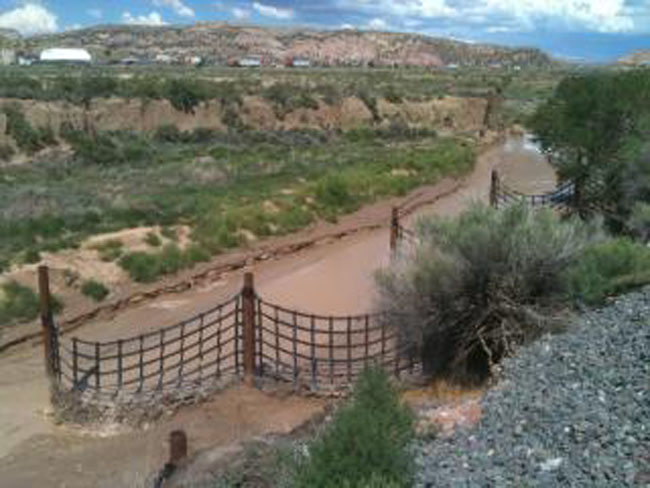

The patented Palisade™ system is a unique system designed to displace high velocity and turbulent flow away from the threatened riverbank and realign the flow by moving the maximum velocity thread to the end of the structures, thus halting river bank migration. Variable permeability allows the system to be tuned to site specific river velocities, cross section and sediment characteristics. For larger and more complex erosion problems, the Palisade™ system is a proven technology with incredible results.

Please click here to view more details about our projects

Available Palisade™ PDF files (Please click on the file name to download or view the PDF): Palisade Brochure

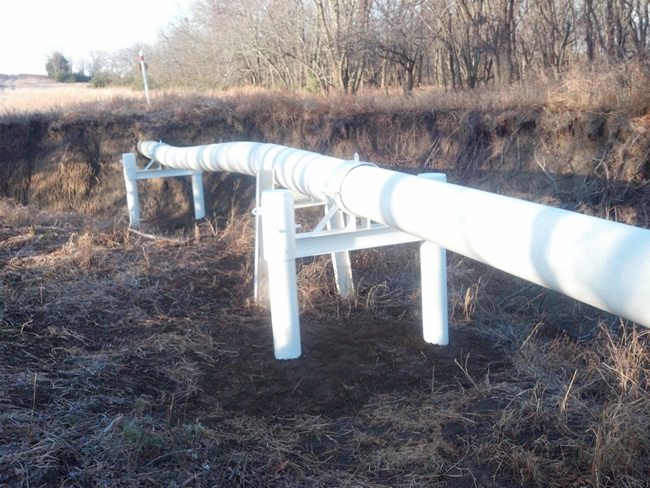

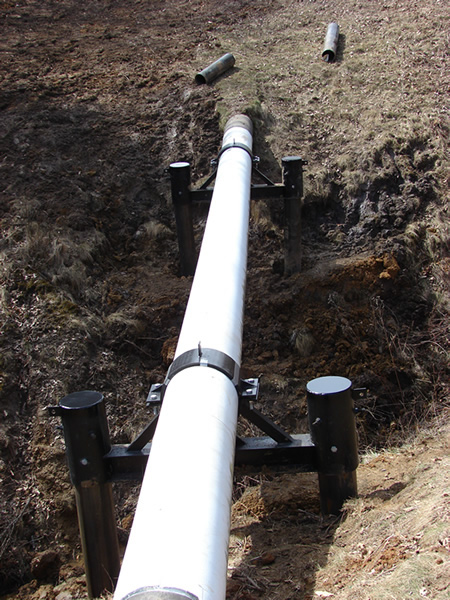

Pipe Supports

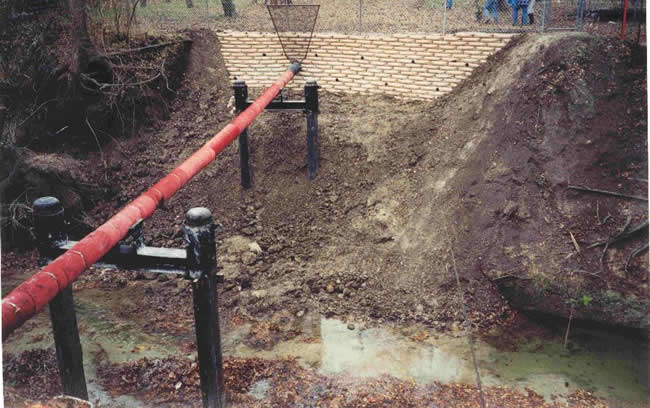

Pipe clamps offer cost effective support for pipelines in unusual situations where maintaining conventional cover has become impractical, where emergency support is needed while repair assessments take place, or even in cases where R.O.W subsidence threatens the pipeline integrity. We have the ability to design standard clamps for normal loads and high strength clamps for greater stresses. All are "diver friendly" for installation in deeper streams or rivers.  Pipe supports can be installed to stabilize any size pipe in any situation.

Click here to view some of our pipe support projects

Available Pipe Support Brochure PDF (Please click on the file name to download or view the PDF): Pipe Support Brochure

Pipeline Coating

Pre-Cast Articulating Block Mat

Articulating Block Mats are very useful in low velocity applications where the lighter weight of a pre-cast mat is acceptable and where the required equipment can access the project site. These mats are manufactured offsite and transported in sections to the job location for installation.
Click here to view some of our Articulating Block Mat projects

Synthetic and Composite Permanent Turf Reinforcement Matting

Turf reinforcement matting systems are among the most recently accepted methods of managing moderate to low velocity flow events; and they do so with minimum impact on the environment. These products interlock with the root and stem structures of natural vegetation, dramatically increasing their resistance to shear stresses. Turf reinforcement is appropriate for small channels and slope protection on the high bank.
Click here to view some of our Reinforced Matting System projects

Grid Reinforced Stabilization

Geogrid material with high tensile strength is embedded in select fill lifts. This material is placed at designed intervals to provide a superior method of soil reinforcement. Geo-grid soil reinforcement allows the reconstruction of slopes to any desired aspect ratio up to and including vertical walls.
Click here to view some of our Grid Reinforced Stabilization projects

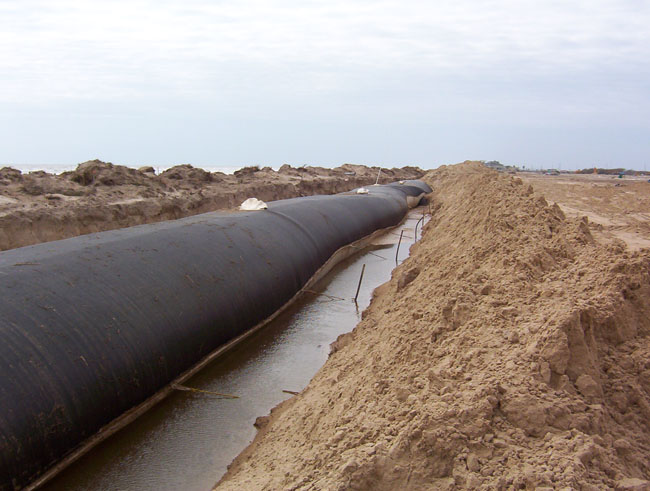

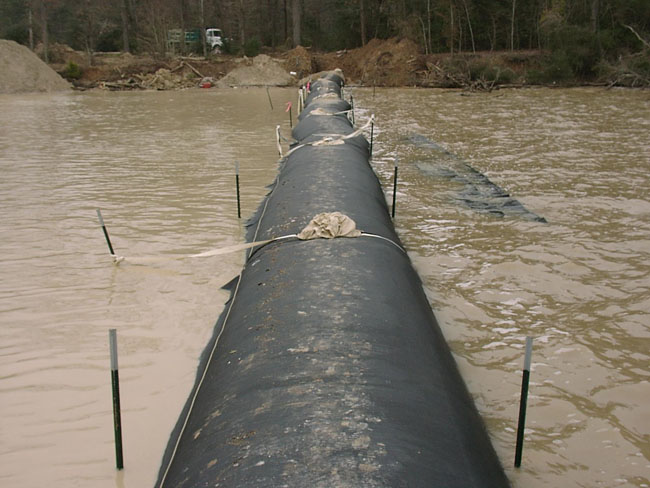

GEOTUBE® Containment System

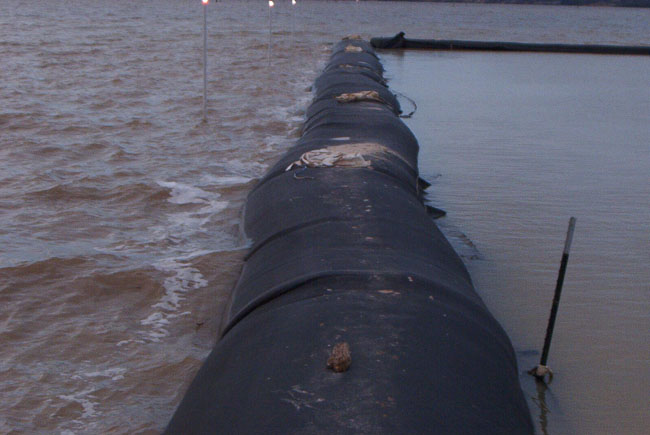

GEOTUBE® containment systems are an innovative and environmentally friendly way to provide erosion protection. The GEOTUBE® containment system uses a woven geo-textile that is fabricated into a tube and can be filled with dredged or imported material. The GEOTUBE® containment system retains the fill material while allowing water to permeate through the tube wall. The tube's diameter and length can vary and is determined by the project requirements. A few of the possible applications of GEOTUBE® containment systems are groins, breakwaters, sand dune cores, containment dikes for dredging material, shoreline protection, wildlife habitat, wetland construction, and dewatering of fine grain material.
GEOTUBE® containment system is a registered trademark owned by Ten Cate Nicolon, Miratech Division.

Click here to view some of our GEOTUBE™ projects

/ Our Erosion Control Projects

Creating Erosion Control through
the innovations you want.

Our Latest Project

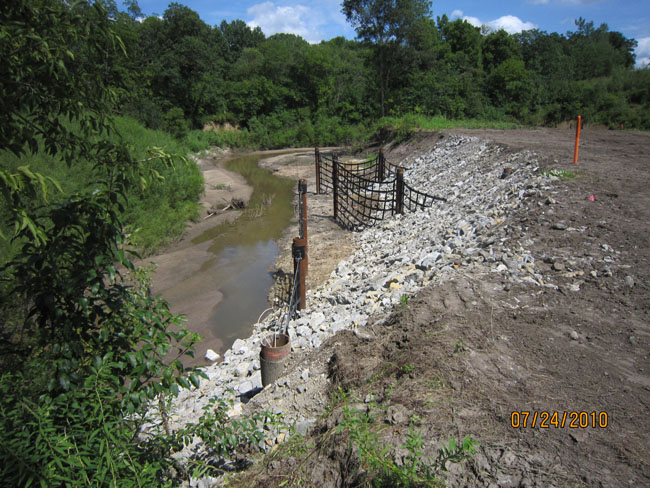

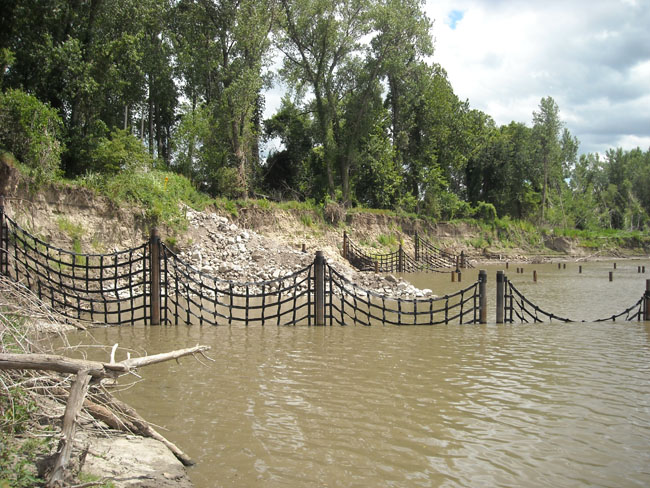

THE PALISADE™ RIVER TRAINING SYSTEM

A dynamic and environmentally-friendly technology designed to protect assets in, and along, various water systems. The principle of the system is to slowly re-direct the energies of the migrating river... READ MORE

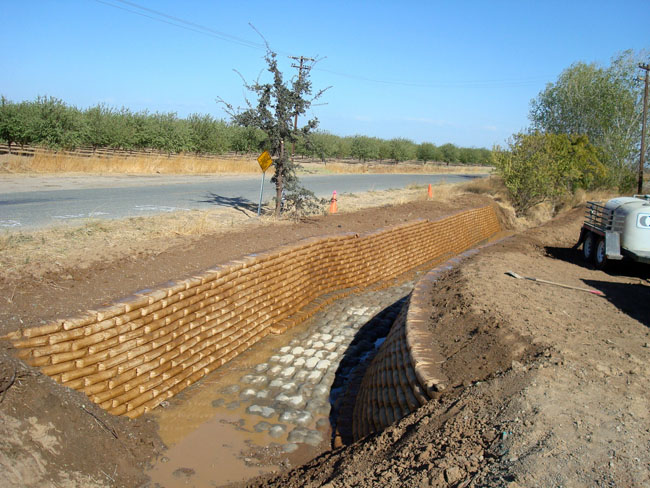

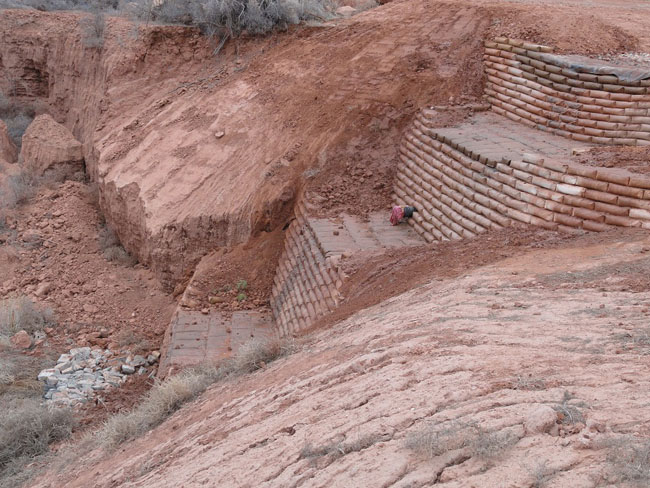

Flexible Concrete Revetment (FCR) Erosion Control

Revetments are an effective technology is most commonly used along banks with exceptionally steep grades and where head-cut are quickly eroding the soils. FCR’s channel the energies of the water and successful... READ MORE

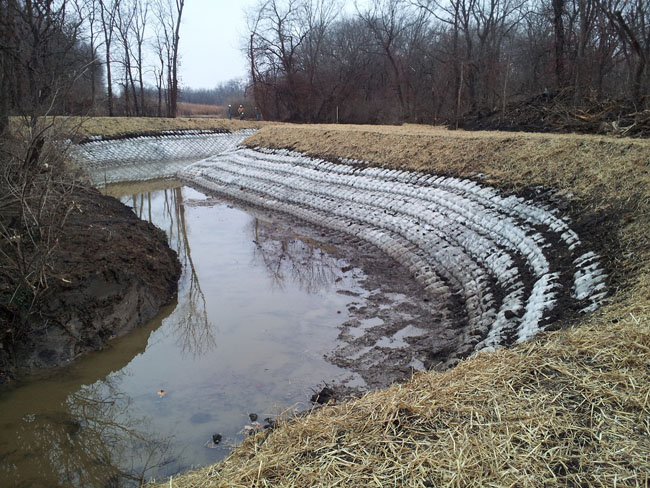

ERCOFORM - Articulating concrete block mattresses

Ercoform™ mats form cable-reinforced articulating concrete block mattresses that resist erosive forces. Ercoform is our most commonly installed mattress, and protects pipelines from bed degradation... READ MORE

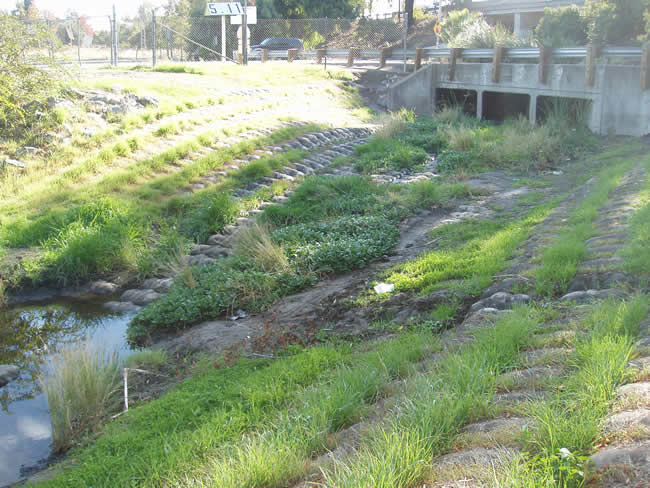

ECOFLEX

Eco-Flex™ articulating mats are an environmentally friendly alternative. Similar to Ercoform™, these mats include open cells to provide space for re-vegetation while offering protection against periodic high flows... READ MORE

SYSTEM 21 pipeline Erosion Control and protection

A versatile and eco-friendly approach to pipeline protection, it is designed for complete pipeline coverage within the creek bed utilizing Ercoform™, while promoting growth of local riparian vegetation... READ MORE

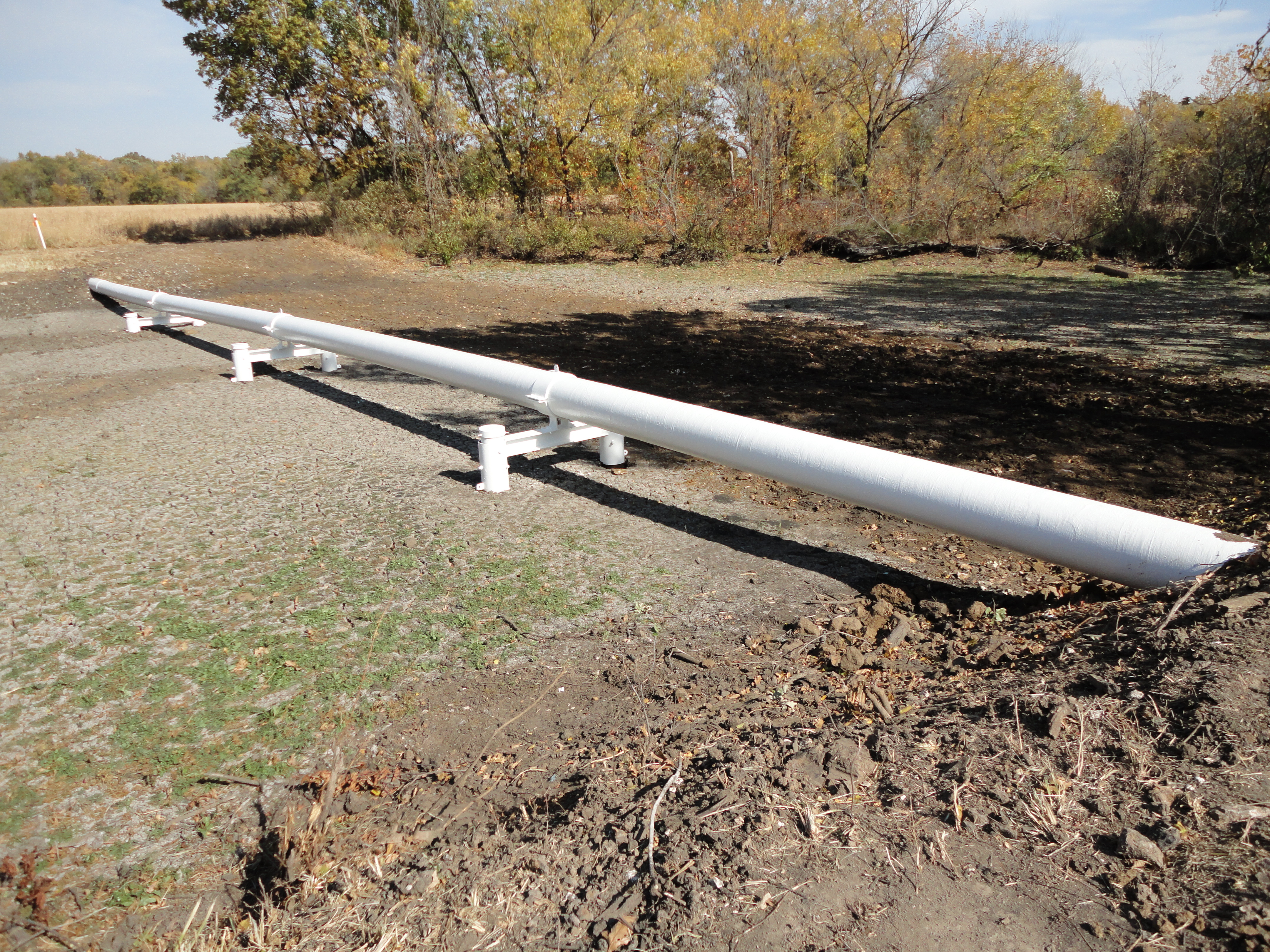

OIL AND GAS PIPELINE SUPPORTS

Pipeline Supports READ MORE
